Cyclotron
FDG Synthesis Cassette
Single-use automated synthesis cassette for FDG radiopharmaceutical production. Compatible with major commercially available synthesis modules.
CY-002
C
Cyclotron
Cyclotron consumables and production equipment for radiopharmacy sites in India.
16 products← All Divisions
Hot Cells
4 products

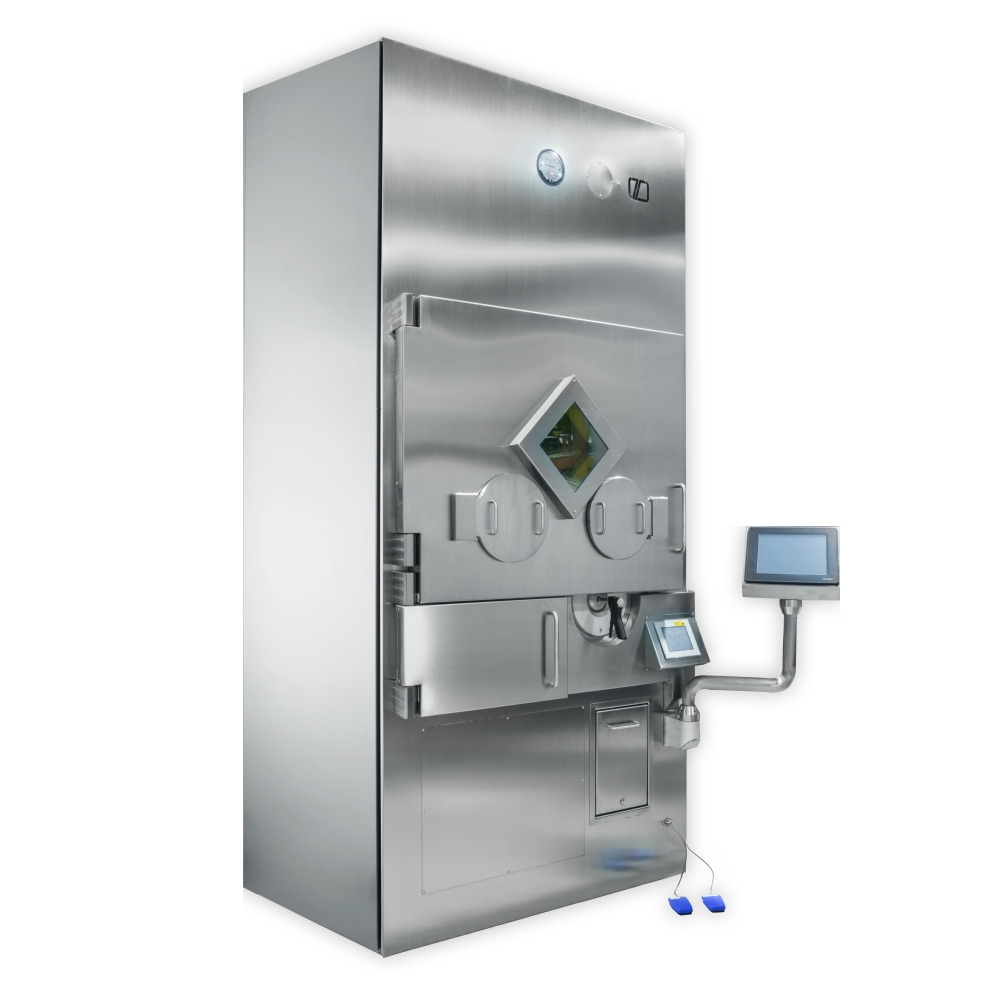

CyclotronFLEX™ Dispensing Hot Cell
Tema Sinergie FLEX GMP Grade A shielded dispensing isolator for cyclotron radiopharmacy. 100 mm Pb India configuration. F-18 PET tracer dispensing with Lu-177 theranostic capability. Optional µ DDS-A automatic dose drawing. Designed against EU GMP Annex 3 + 1 + 11 and AERB cyclotron-facility requirements.
CY-003

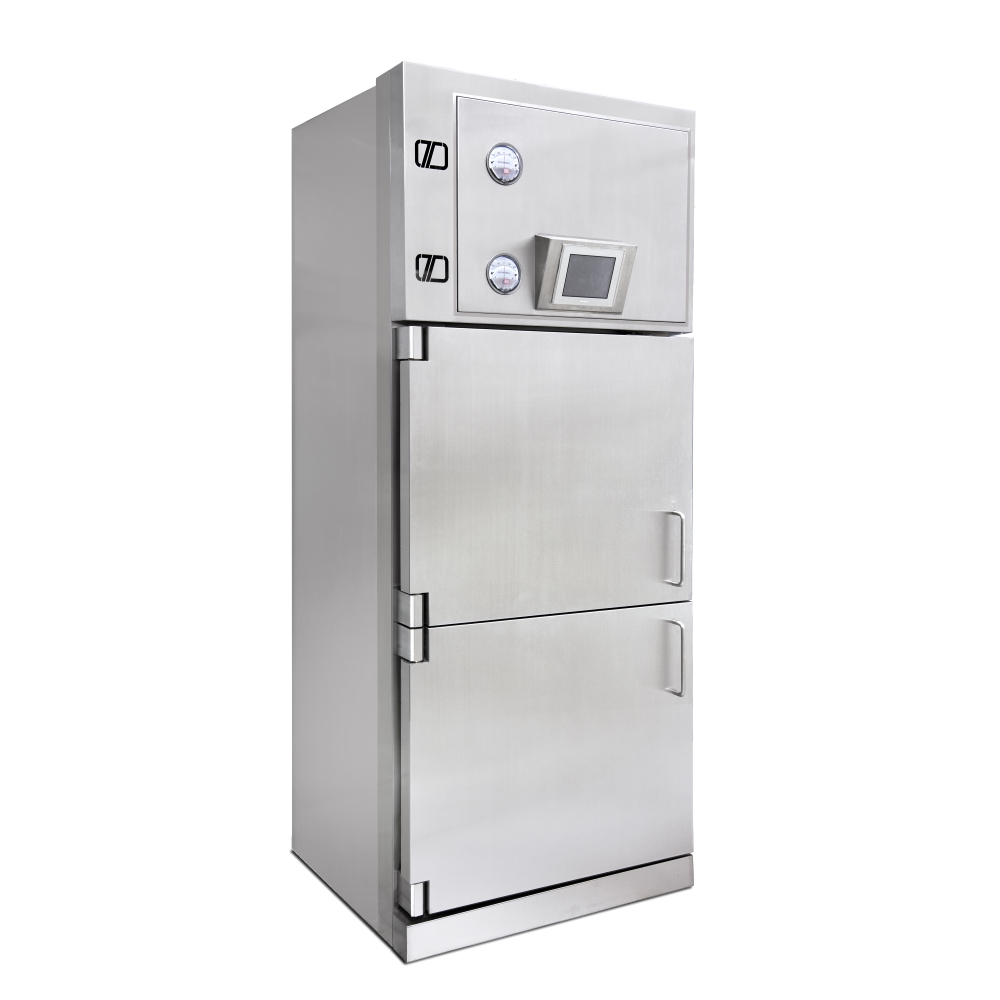

CyclotronSYNT™ Synthesis Hot Cell
Tema Sinergie SYNT shielded synthesis hot cell for cyclotron F-18 PET tracer production. 100 mm Pb India configuration. Hosts automatic synthesis modules behind GMP Class B ventilation with ISO 10648:2 air-tightness and AISI 316L stainless inner finish. Pairs with FLEX dispensing.
CY-005

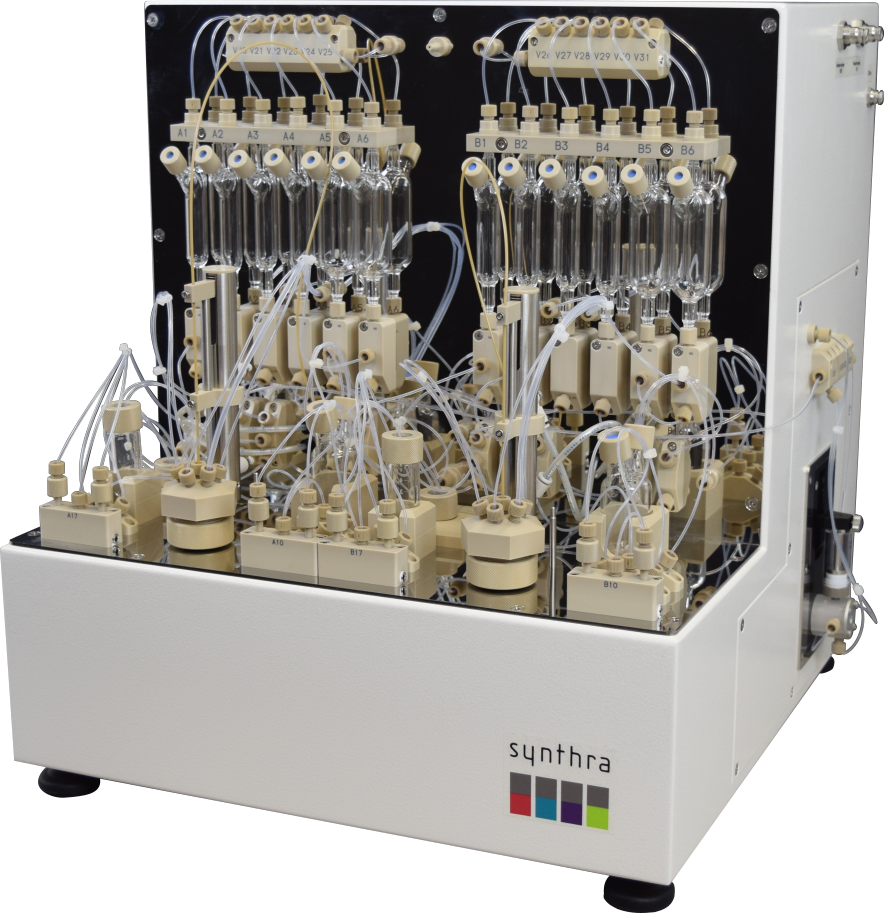

CyclotronFDGtwo™ Radiosynthesizer
Automated F-18 radiosynthesizer with two independent reaction-vessel sets — two [18F]FDG batches from one operator setup. Basic hydrolysis < 28 min, acid hydrolysis < 22 min, radiochemical purity > 98 %, guaranteed RCY 65–85 %. Multi-tracer chemistry: FDG, FMISO, FLT, FCh and other nucleophilic [18F] compounds. Compact 42 × 50 × 48 cm footprint, fits a SYNT-class synthesis hot cell.
CY-009
Dispensing Modules
3 products

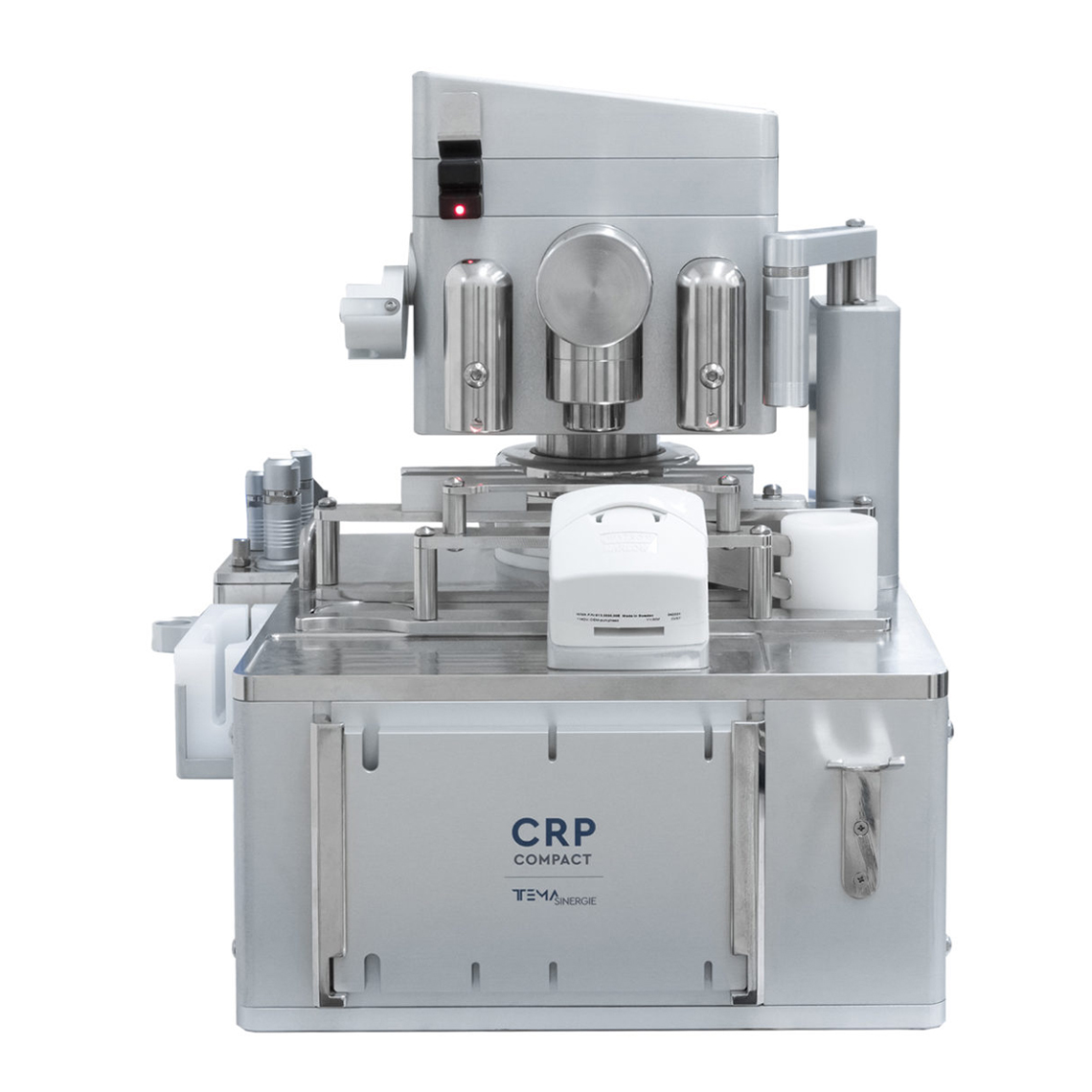

CyclotronCRP™ Radiopharmaceutical Dispensing System
Tema Sinergie CRP Compact and CRP Compact plus automated dispensing module. Drops into any shielded laminar-flow hot cell (typically the FLEX). Open + closed vial dispensing with under-1% volume deviation. 100 units installed worldwide. EU GMP Annex 1 compliant. Primary use in India: F-18 PET tracer unit-dose dispensing.
CY-006

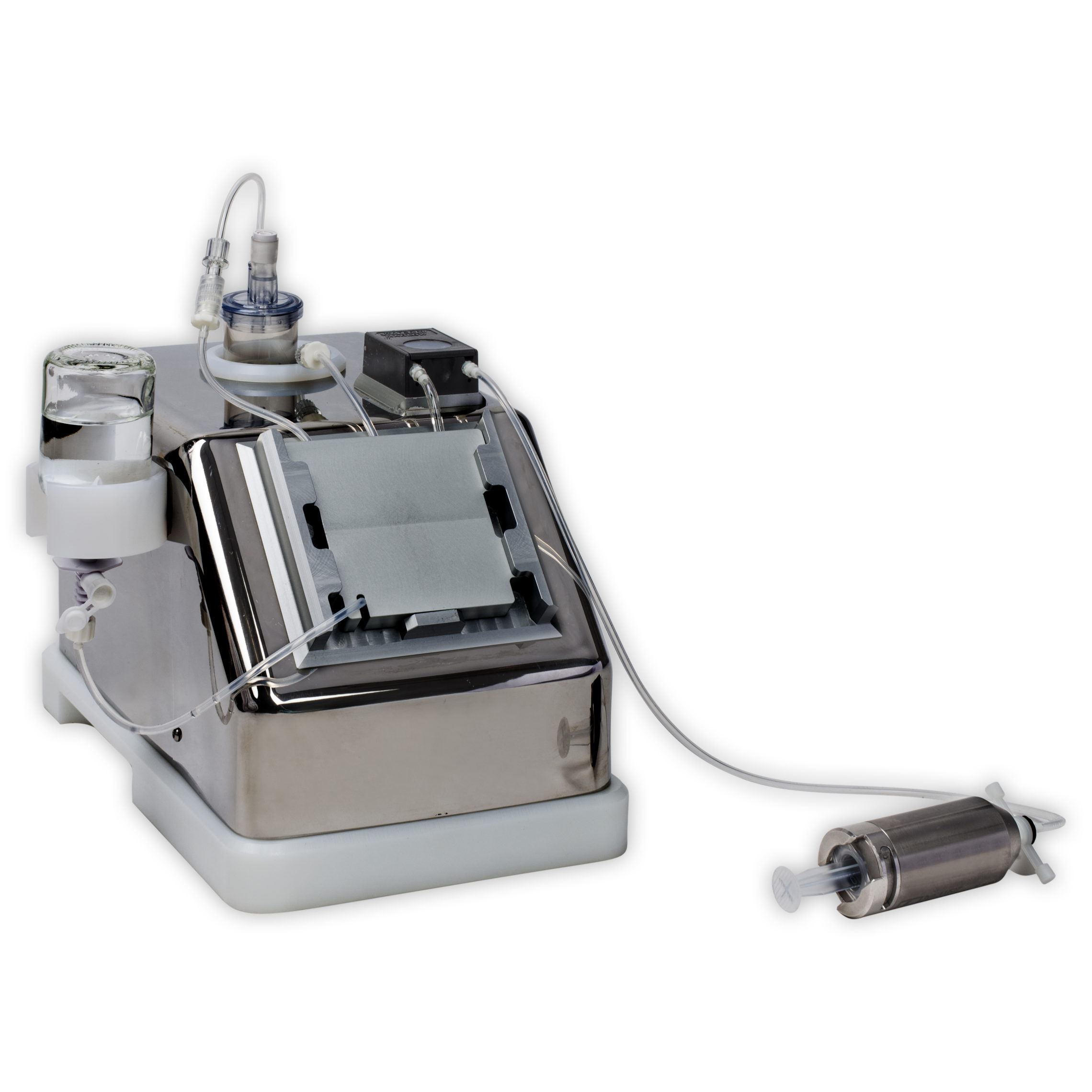

Cyclotronµ DDS-A™ Automatic Dose Drawing System
Tema Sinergie µ DDS-A plug-and-play automatic dose drawing module. Drops into any laminar-flow hot cell with a dose calibrator. Shielded-syringe output with built-in manual-backup mode. 274 units installed worldwide. India primary use: backup F-18 dispenser to the CRP / FLEX workflow.
CY-007

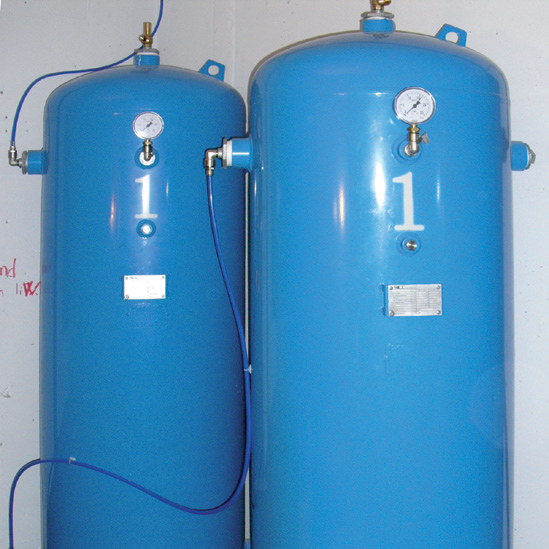

CyclotronWGHS™ Waste Gas Handling System
Tema Sinergie WGHS — radioactive off-gas disposal system for cyclotron synthesis cells. Detects radioactive gases, isolates the host hot cell, stores gas in tanks pending decay, releases safely after decay, records per-cycle data. Facility-level utility. Pairs with the SYNT synthesis cell.
CY-008
Radiosynthesizers
0 productsRadiosynthesizers — catalogue updating
Contact Saxsons for current radiosynthesizers availability in the Cyclotron portfolio.
Enquire →Radiation Monitoring
7 products

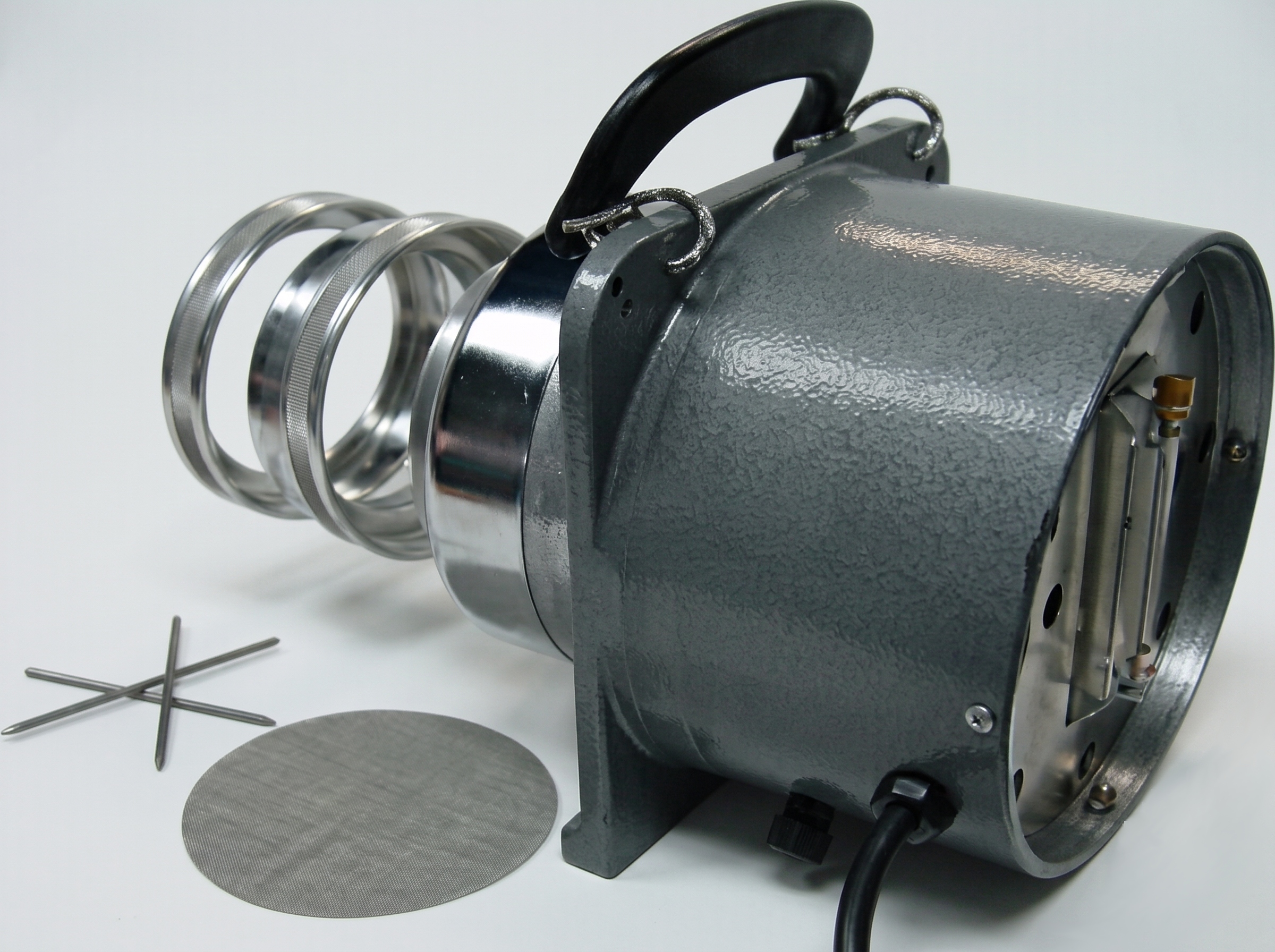

CyclotronHigh-Volume Air Sampler
High-volume air sampler for radioactive aerosol + radioiodine sampling. Universal AC motor, vacuum-gauge flow monitoring, cast-aluminium filter holder. Total-Filtration Iodine Air (TFIA) configuration: 4-inch paper filter for particulates + dual back-to-back 2-1/2-inch activated charcoal cartridges for I-131 / I-125 capture with collection-efficiency cross-check. ANSI N13.1 / ISO 2889 stack-monitoring fit, ANSI N42.18 hot-lab fit, IAEA Safety Reports radioiodine air-sampling fit. Dual 115 V / 230 V variants.
CY-010

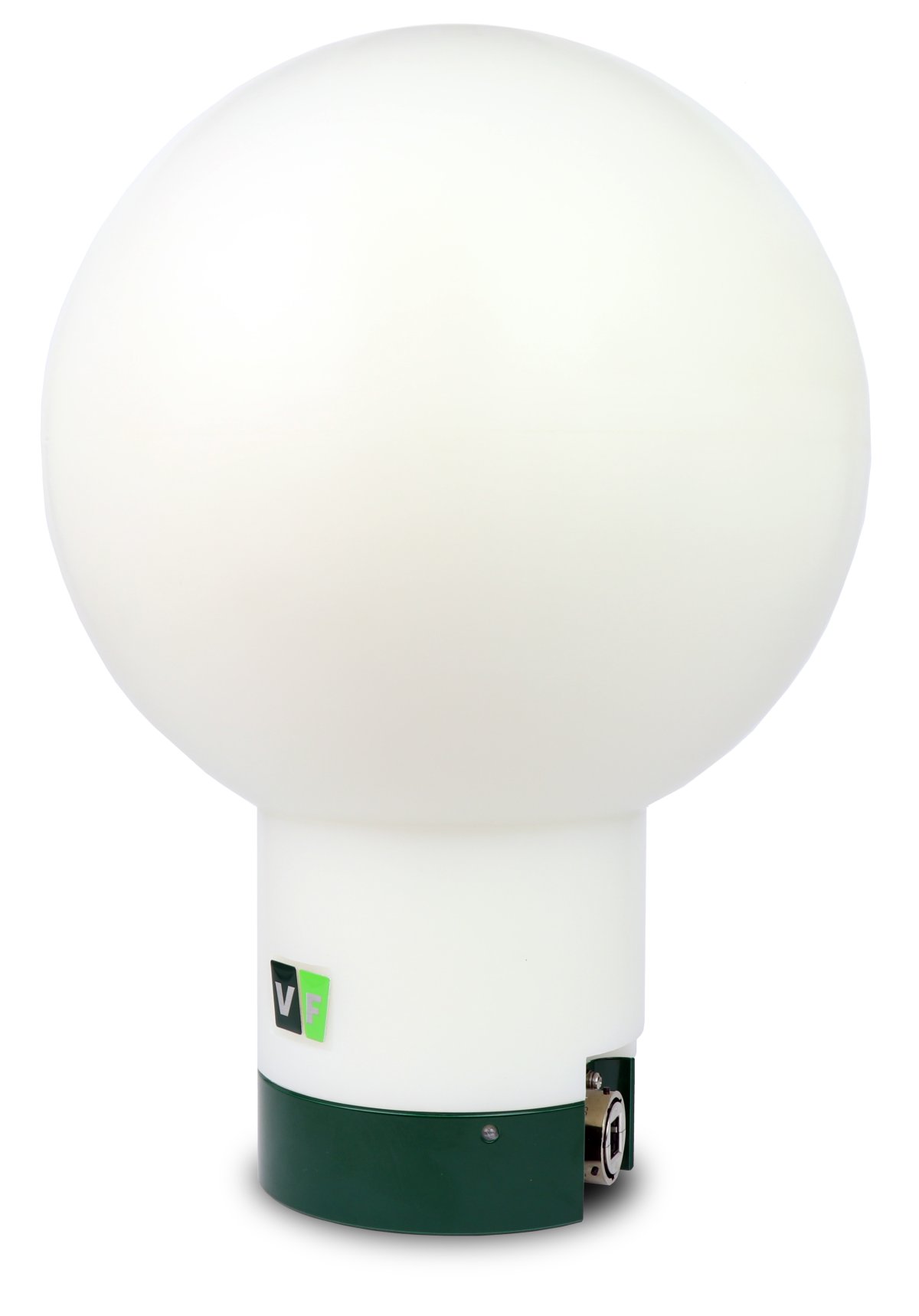

CyclotronNeutron Dose Rate Meter
Ambient neutron dose equivalent rate H*(10) monitor for cyclotron facilities, PET centres, particle accelerator workplaces, neutron calibration laboratories and spent-fuel storage areas. Two adjustable alarm levels; autonomous local operation or full integration into the site RMS via RS-485 + Ethernet. IP-rated for indoor and outdoor deployment.
NM-019

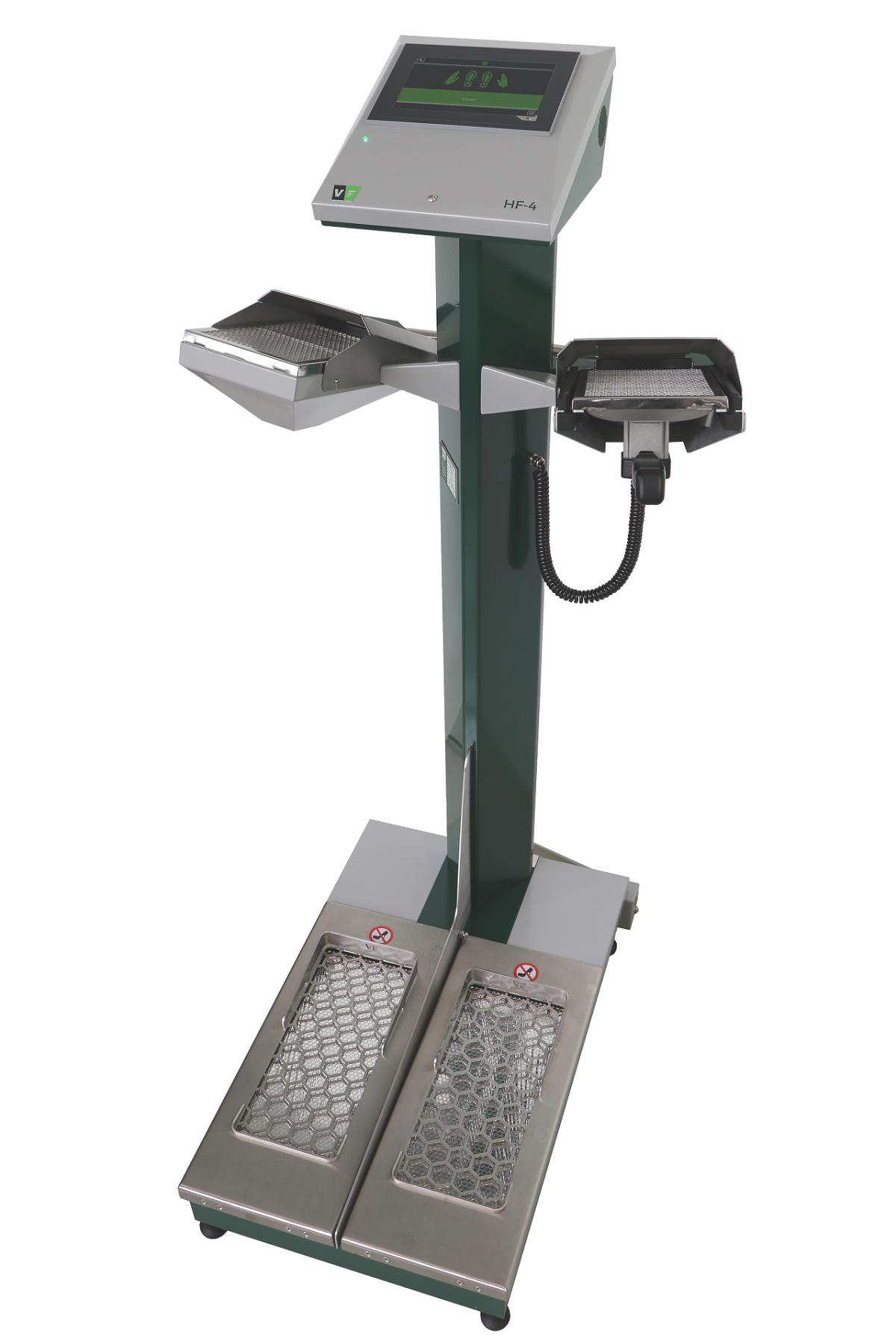

CyclotronHand-Foot Contamination Monitor
Gas-less smart-scintillation hand-foot-clothing contamination monitor for alpha, beta and gamma emitting radionuclides. Two hand + two foot detectors with optional detachable hand probe. Two-step hand measurement (palms + backs), multi-language voice prompts, Ethernet LAN standard. The exit-point safety device for nuclear-medicine hot-lab, cyclotron and theranostic-centre egress.
NM-020
CyclotronRMS Server
Central radiation-monitoring-system server + software application. Aggregates area gamma, neutron, contamination, stack and air monitors into one console with single-channel and multi-channel tables, alarm management and archived-value trending. Modular architecture scales from a small PET centre to a multi-vault cyclotron-and-therapy facility. LAN + RS-485 connectivity.
NM-021
CyclotronStack / Effluent Monitor
Gaseous effluent air monitor for facilities producing, processing and using positron-emitting radionuclides. NaI(Tl) GD-53 gamma detector installed inside or beside the ventilation duct with optional collimator. Baseline variant (1K MCA, region-of-interest) and spectroscopic variant (1K-8K MCA with peak analysis). For cyclotron and PET centre stack release monitoring.
NM-022

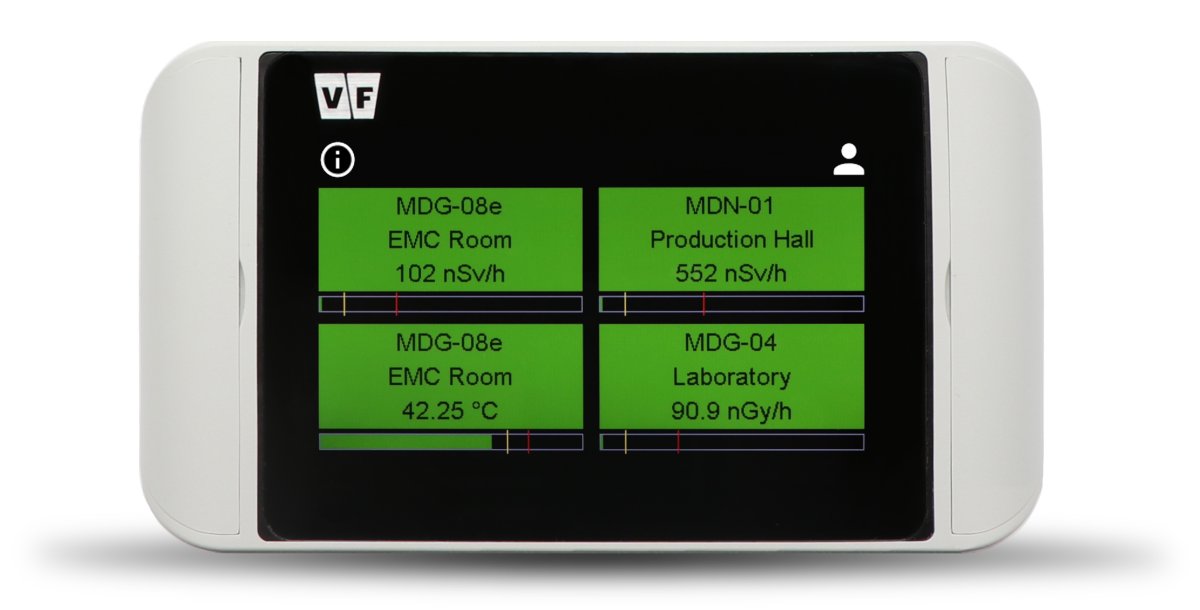

CyclotronRadiation Display Unit
Compact local touchscreen display unit for radiation-monitoring systems. Connects up to four detectors directly via Ethernet or RS-485 and forwards the cluster to the host RMS via Ethernet. Integrated audible / visual alarms, 5,000-value local archive (adjustable storage period from 10 s), ruggedised variant available for harsher install locations.
NM-023
CyclotronArea Gamma Monitor
Compact gamma dose-equivalent-rate area monitor with integrated backlit display and Ethernet interface (no RS-485-to-Ethernet bridge needed). Two adjustable alarm levels, optical + audible indication, ≥180-day local data archive, relay outputs. Standalone autonomous operation OR integrated into the RMS server. IP-rated for indoor + outdoor deployment.
NM-024
Reagents & Targets
2 products

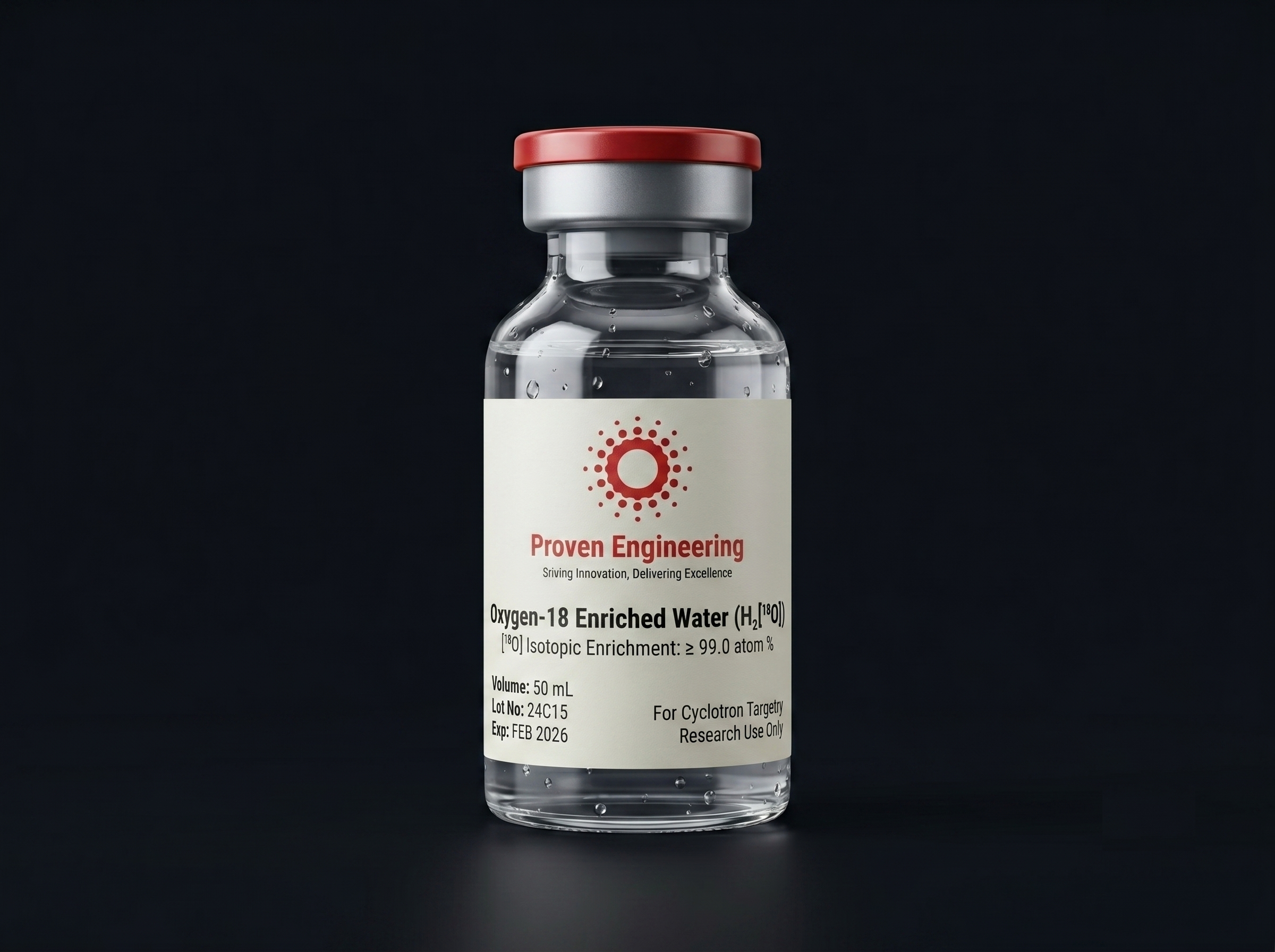

CyclotronO-18 Enriched Water — Cyclotron Grade
Cyclotron-grade [18O]H2O for F-18 target loading via the 18O(p,n)18F reaction. Isotopic enrichment 98–99 % atom O-18, chemical purity > 99.99 %, conductivity < 3.0 µS/cm, sterile + pyrogen-free (< 0.25 EU/mL), pH 6.0–8.0. Sealed crimp-cap glass vials with chlorobutyl septum, sterilised prior to filling. Per-batch certificate of analysis covering isotopic, chemical, sterility and ionic-impurity testing. Cold-chain delivery across India.
CY-001- Cyclotron
Radiopharmaceutical Labelling Reagent Kit
Complete reagent kit for radiopharmaceutical synthesis. Includes precursor vials and QC reagents. Full documentation and release certificate supplied.
CY-004
